Sourcing reliable petroleum dispensing equipment is critical for seamless commercial fueling operations. As a direct manufacturer and global supplier, we provide the 12VW Vacuum-Assist Nozzle, meticulously engineered for high-volume liquid transfer. Designed to meet rigorous bulk procurement demands, this dispensing solution offers precision engineering, robust vapor recovery, and exceptional longevity. Station operators and volume distributors can rely on its consistent, heavy-duty performance, directly minimizing maintenance downtime while maximizing operational profitability and forecourt efficiency.

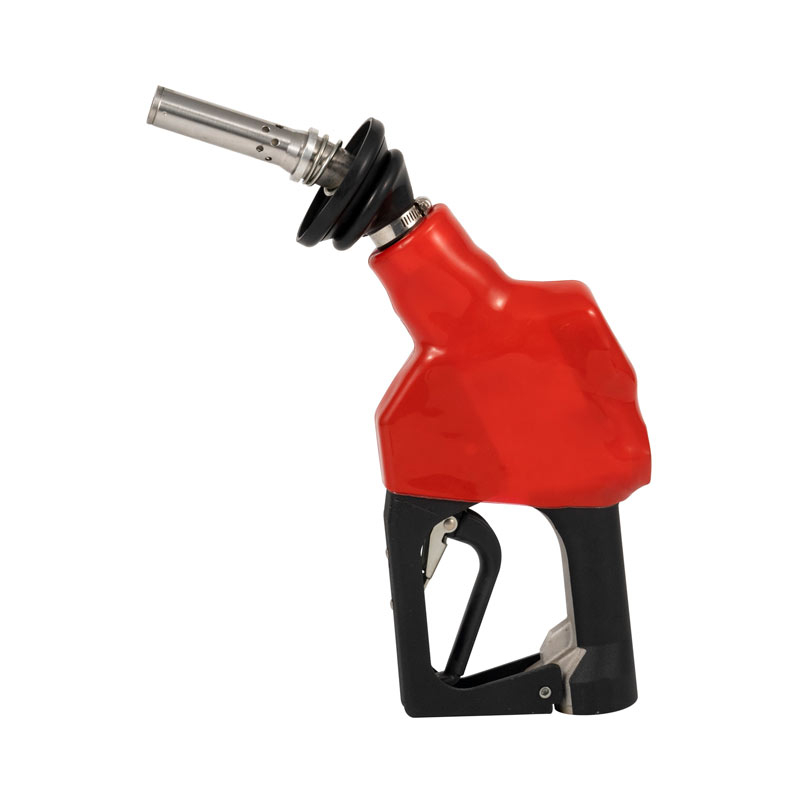

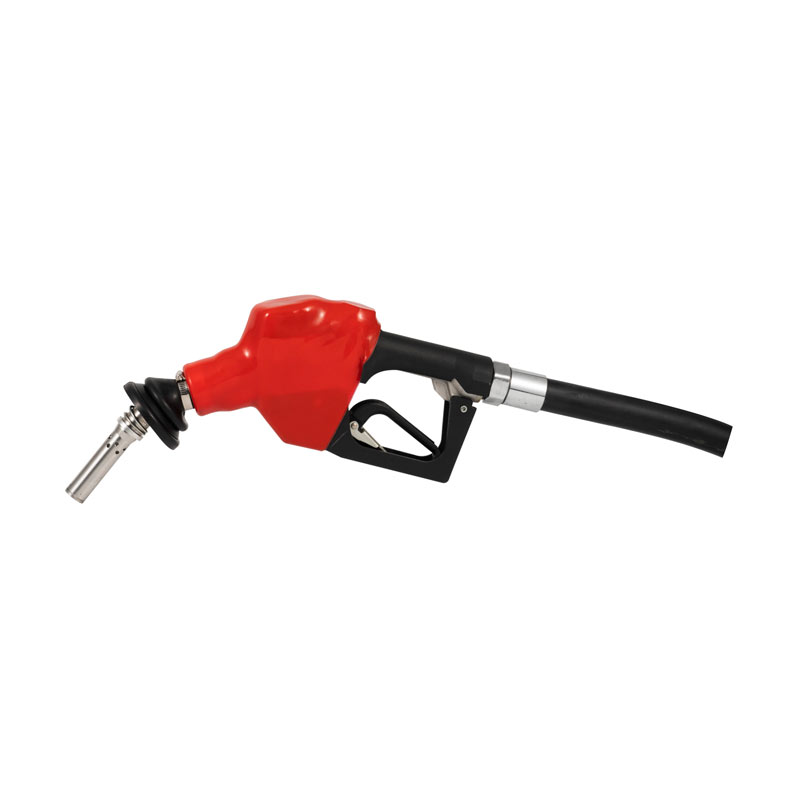

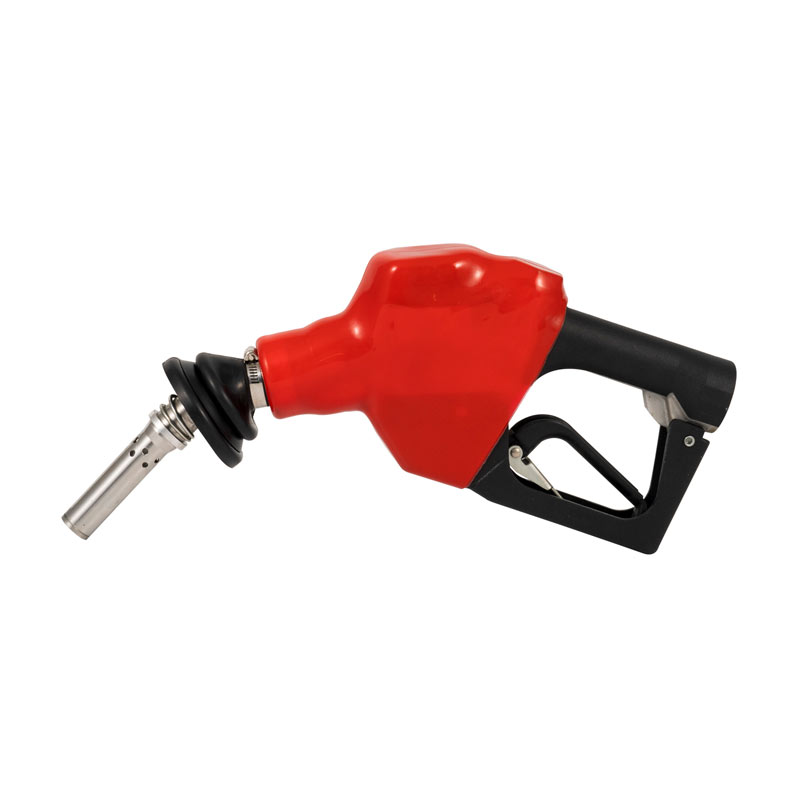

The TDW 12VW Vacuum-Assist Nozzle, expertly crafted by BaoTai, represents the pinnacle of modern fuel dispensing technology. Designed specifically for high-demand commercial environments, this premium nozzle seamlessly integrates advanced fluid dynamics with rigorous environmental compliance. When you hold the unit, the balanced weight distribution of the aluminum body and the tactile assurance of the high-strength composite guard immediately convey industrial-grade craftsmanship. The smooth, metallic click of the engagement mechanism sounds a note of absolute precision, ensuring operators feel confident during every dispensing cycle. By addressing the core challenges of fluid transfer—such as vapor escape, accidental spills, and component wear—this nozzle directly improves your station's throughput and safety metrics. BaoTai has engineered this product not just to transfer unleaded gasoline, diesel, and ethanol blends, but to elevate the entire refueling experience, protecting your forecourt assets while delivering measurable long-term value to your infrastructure.
| Specification | Detail |
|---|---|
| Product Name | TDW 12VW Vacuum-Assist Nozzle |
| Manufacturer | BaoTai |
| Product Category | Fuel Nozzle |
| Vapor Recovery Type | Vacuum-Assist |
| Body Material | Aluminum |
| Lever & Guard Material | Duratuff® / High-strength composite |
| Spout Material | Aluminum with Stainless Steel tip |
| Inlet Size | M34 Metric |
| Max Working Pressure | 50 psi (3.45 bar) |
| Compatible Media | Unleaded gasoline, diesel, up to 10% ethanol blends |
| Seals Material | Graphite with Teflon® / Viton® |
| Unit Weight | Approx. 3.1 lbs (1.41 kg) |
Upgrading your dispensing infrastructure requires components that deliver tangible operational advantages. The TDW 12VW Vacuum-Assist Nozzle is engineered to optimize flow rates, reduce maintenance intervals, and ensure maximum safety across all fueling bays.
Precision Flow Control: The meticulously calibrated internal valve system allows for exact fluid delivery, eliminating costly overfills and ensuring accurate volume measurement for every transaction.
Tactile Feedback Mechanism: Operators experience a distinct, smooth resistance when engaging the lever, translating to better control and reduced hand fatigue during extended, high-volume shifts.
Thermal Resilience: The premium internal seals maintain their structural integrity across extreme temperature fluctuations, preventing weeping or degradation in harsh, unforgiving climates.
Acoustic Dampening: Fluid flow pathways are optimized to reduce internal turbulence, resulting in a quieter dispensing process that enhances the overall auditory environment of the forecourt.
Corrosion Resistance: The specialized exterior treatment repels harsh chemicals and environmental moisture, preserving the unit's structural integrity and visual appeal over years of heavy commercial use.
Navigating stringent environmental regulations is a primary concern for modern fueling facilities. This nozzle transforms compliance from a regulatory burden into an operational asset through its state-of-the-art vapor collection architecture.
Integrated Vapor-Valve: Actively captures displaced fumes directly at the vehicle fill pipe, preventing harmful emissions from entering the atmosphere and ensuring a clean, odor-free forecourt for patrons.
Vapor Escape Guard: Forms a secure, tight seal against the vehicle receptacle, maximizing the efficiency of the vacuum-assist system and minimizing valuable product loss through evaporation.
Regulatory Assurance: Built to meet and exceed rigorous industry benchmarks, including CARB and UL standards, safeguarding your facility against costly compliance penalties and operational halts.
Green Operation: By significantly reducing fugitive emissions, this dispensing equipment supports your corporate sustainability goals and creates a healthier, safer environment for both operators and customers.
Equipment failure is not an option when continuous throughput drives your revenue. Constructed from uncompromising materials, this nozzle is built to withstand the punishing realities of high-traffic commercial dispensing.
Aircraft-Grade Aluminum Body: Offers an exceptional strength-to-weight ratio, resisting physical impacts while keeping the unit light enough for comfortable, all-day handling by operators.
Stainless Steel Spout Tip: Defends against the relentless friction of metal-on-metal contact during insertion and removal, preventing premature wear, scratching, and deformation of the nozzle tip.
Duratuff® Composite Guard: The high-strength lever and guard absorb severe shock from accidental drops, protecting the delicate internal mechanisms from catastrophic damage.
Proven Longevity: Subjected to rigorous testing parameters, including over one million continuous operational cycles without failure, ensuring your procurement investment yields years of reliable service.
Reduced Lifecycle Costs: The exceptional durability of these premium components directly translates to fewer replacements and repairs, lowering your total cost of ownership significantly over time.
Mitigating risk is paramount in any environment handling volatile liquids. This nozzle incorporates a multi-layered safety architecture designed to proactively prevent spills, leaks, and potential ignition events on your property.
No Pressure - No Flow Technology: The system remains securely locked until the dispenser is pressurized, completely eliminating the risk of accidental discharge if the lever is squeezed while the pump is off.
FlowLock™ Drop Protection: In the event the nozzle is accidentally dropped or points upward, the internal mechanism instantly severs the fluid flow, averting dangerous and costly environmental spills.
Limit Design Architecture: Prevents the hold-open clip from engaging improperly, ensuring the main valve closes automatically and securely when the vehicle tank reaches maximum capacity.
Static Dissipation: Engineered to safely ground static electricity generated during high-speed fluid transfer, neutralizing one of the most significant fire hazards present on the modern forecourt.
Seamless integration into your existing infrastructure eliminates the need for expensive retrofitting. This unit is designed with universal adaptability in mind, streamlining your procurement and installation processes.
Standard M34 Metric Inlet: Threads flawlessly onto global standard commercial hoses, ensuring a secure, leak-free connection without the need for specialized, costly adapters.
System Agnostic: Performs impeccably alongside major vacuum-assist vapor recovery platforms, including Wayne®Vac and Gilbarco® VaporVac®, providing ultimate flexibility for your site architecture.
Multi-Fuel Versatility: Rated for the safe, efficient delivery of unleaded gasoline, standard diesel, and up to 10% ethanol blends (E10), allowing you to standardize equipment across different fuel grades.
Consistent Flow Dynamics: Maintains optimal delivery speeds regardless of the specific fuel viscosity, ensuring your patrons experience swift, uninterrupted service during peak operational hours.
The physical interaction between the user and the equipment defines the perceived quality of your facility. We have meticulously refined every touchpoint to deliver an intuitive, comfortable, and premium dispensing experience.
Thermal Insulator Grip: The tactile, textured sleeve protects hands from extreme heat or cold, providing a secure, slip-resistant hold even in severe rain or snow conditions.
Vehicle Paint Protection: The carefully contoured, non-abrasive guard prevents accidental scratches to the vehicle's finish, protecting your patrons' property and your facility's premium reputation.
Effortless Hold-Open Clip: Designed for smooth, one-handed engagement, allowing users to lock in their desired flow rate with a simple, effortless flick of the finger.
Accu-Stop® Precision: Enables operators to top off tanks to the exact penny or drop, providing a satisfying, highly controlled conclusion to the fueling process without splash-back.
Balanced Weight Distribution: Weighing approximately 3.1 lbs, the unit's center of gravity is perfectly aligned with the grip, drastically reducing wrist strain during high-volume usage.
Minimizing maintenance downtime keeps your lanes open and revenue flowing. The intelligent engineering of this nozzle simplifies routine servicing, allowing your technicians to perform rapid, on-site diagnostics and repairs.
Maintenance-Free Vapor Passage: The internal vapor routing system is designed to remain clear and functional without requiring periodic disassembly or complex internal part replacement.
Modular Component Design: External wear parts, such as the spout assembly and insulator sleeve, can be swapped out in minutes directly on the forecourt, keeping lanes operational.
Accessible Sealing Architecture: The premium Graphite, Teflon®, and Viton® seals are positioned for straightforward inspection, ensuring preventative maintenance is both quick and highly effective.
Standardized Tooling: Routine adjustments and parts replacements require only standard hand tools, eliminating the need for expensive, proprietary maintenance kits for your service team.
Streamlined Inventory: Because the wear components are modular and universally compatible within the series, your facility can maintain a leaner, more cost-effective spare parts inventory.
Partnering with the right manufacturer dictates the long-term success of your equipment procurement strategy. We deliver more than just physical hardware; we provide comprehensive solutions that drive operational excellence.
Uncompromising Quality Control: Every single unit undergoes rigorous pressure, flow, and vapor recovery testing before leaving our facility, guaranteeing out-of-the-box reliability.
Deep Industry Expertise: Decades of specialized manufacturing experience allow us to anticipate market demands and engineer solutions that solve real-world forecourt challenges.
Scalable Production Capacity: Whether you are outfitting a single premium location or upgrading an entire national network, our robust supply chain ensures timely, large-volume fulfillment.
Dedicated Technical Support: Our team of engineering specialists is readily available to assist with system compatibility analysis, installation guidance, and lifecycle maintenance planning.
Value-Driven Engineering: By focusing on durability and modularity, we ensure that your initial investment yields the lowest possible total cost of ownership over the product's lifespan.
What makes the M34 metric inlet advantageous for my existing systems?
The standard M34 metric threading ensures immediate compatibility with most global hose configurations. This eliminates the need for custom adapters, significantly reducing installation time and preventing potential leak points at the connection joint.
How does the No Pressure - No Flow feature protect my facility?
This mechanism acts as a critical fail-safe. If a user squeezes the lever before the dispenser activates the pump, the valve remains locked closed. This prevents sudden, unexpected surges of fuel, drastically reducing the risk of hazardous spills and associated cleanup costs.
Can the spout be replaced on-site without removing the entire unit?
Yes, the highly modular design allows maintenance personnel to replace the aluminum and stainless steel spout assembly directly at the dispenser. This rapid serviceability keeps your fueling lanes operational and minimizes maintenance labor costs.
Is this model compatible with E10 ethanol blends?
Absolutely. The internal seals, constructed from high-grade Teflon® and Viton®, are specifically engineered to resist the corrosive nature of up to 10% ethanol blends, ensuring long-term integrity without degradation, weeping, or swelling.
How does the integrated vapor-valve improve the station environment?
The built-in valve actively captures displaced fumes directly at the source during refueling. By routing these vapors back into the underground storage system, it maintains a clean, odor-free atmosphere for patrons while ensuring strict adherence to environmental regulations.
