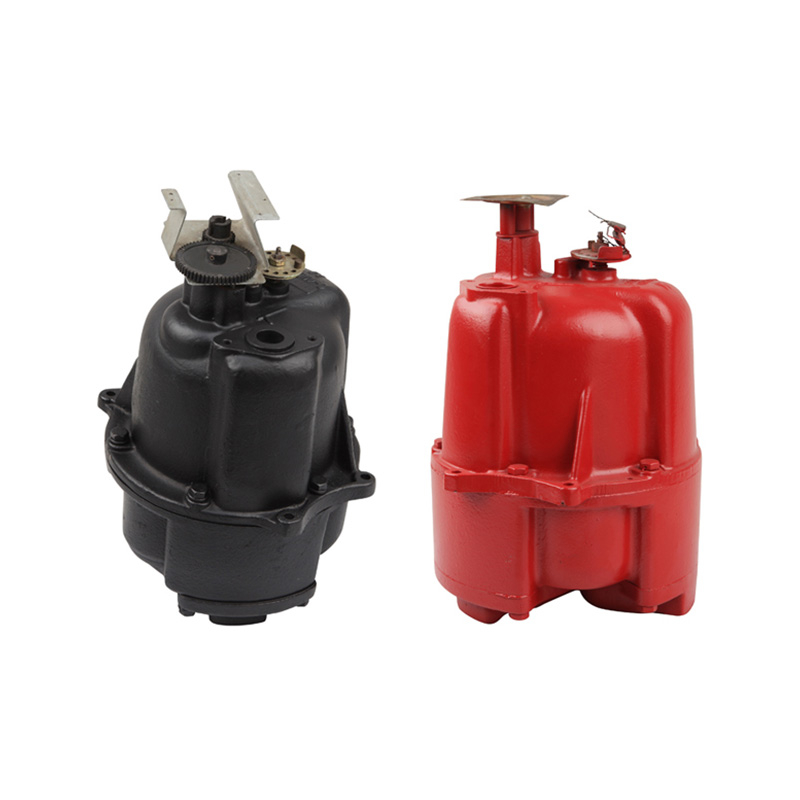

TDW-BT55 Flow meter
Product Overview:
Features and Benefits:
Ø TDW-BT55 flow meter with cast iron body and nodular cast iron distribution valve, adopts advanced technology, which can be widely used on different gasoline dispensers.
Ø This product has advantages as long using term, high precision, firm structure etc.
Ø It can be the best choice of gasoline dispenser component.
Ø 100% Factory tested.
Technical Specifications | |
Working Pressure | 0.12-0.35Mpa |
Temperature | -25°C to 55°C |
Flow Rate | 5-60L/m |
Measurement Accuracy | ±0.2%or better |
Repeat Variation | 0.07% |
Discharge rate per revolution | 0.5L |
Rotary Direction of Axia | Clockwise |
Working Life | ≥10000000L |
Dimension | 270mmx240mmx350mm |
Net Weight | About 22.5KG |
