How Does An Automatic Nozzle Work?

Views: 0     Author: Site Editor     Publish Time: 2026-04-12      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

Inconsistent fluid pressure creates severe operational hazards across various industries. A sudden pressure drop in a firefighting hose compromises crew safety instantly. Similarly, unstable line pressure in commercial fuel dispensing introduces significant overflow risks. Operations rely on stable fluid delivery, yet you cannot always guarantee steady pump output.

Enter the Pressure-Sensitive Automatic Nozzle. It acts as an engineered, adaptive solution. This device dynamically adjusts to changing flow rates and line pressures without requiring manual intervention. It actively compensates for upstream supply inefficiencies.

We built this evaluation guide specifically for operations managers and technical procurement teams. You will move beyond basic mechanical explanations. You will learn how to accurately assess internal mechanisms, verify safety compliance, and identify hidden operational risks. By understanding these dynamic systems, you can confidently upgrade your equipment and safeguard your daily operations.

Key Takeaways

  • Dynamic Adaptation: Automatic nozzles use internal mechanisms (spring-loaded baffles or Venturi vacuums) to maintain constant discharge pressure despite fluctuating supply.

  • Safety Interlocks: Industrial variants utilize pressure-activated "dead levers" to prevent accidental discharge, crucial for NFPA compliance.

  • The Flow vs. Reach Tradeoff: While they optimize stream quality in low-pressure scenarios, they can mask actual GPM (Gallons Per Minute) output, requiring operators to rely on flow meters or reaction force.

  • Application-Specific Selection: Choosing the right model depends entirely on your system's supply stability, regulatory environment (e.g., NFPA 1962 or NFPA 30A), and maintenance capabilities.

The Core Mechanics of a Pressure-Sensitive Automatic Nozzle

Standard delivery tools feature fixed orifices. They rely entirely on consistent pump discharge. When pump pressure drops, the delivery performance immediately fails. You lose reach, volume, and control. Automatic variants solve this widespread problem. They function as variable-flow, constant-pressure devices.

Mechanism 1: Spring-Loaded Baffles (High-Pressure Water/Fire Applications)

High-pressure fluid delivery requires dynamic physics to maintain safe reach. Engineers place a specialized, heavy-duty spring behind an internal baffle. This component reacts seamlessly to incoming water pressure.

As pump discharge increases, the rushing water forces the spring-loaded baffle forward. This movement widens the exit opening, allowing more volume to escape while keeping pressure steady. If the pump stutters and supply pressure drops, the spring expands. The baffle retracts to narrow the opening. By restricting the exit, the device artificially sustains the discharge pressure.

Consider a simple, everyday analogy. Imagine placing your thumb over the end of a running garden hose. If someone turns down the spigot, the water stream weakens and falls short. You instinctively press your thumb harder over the opening. You reduce the exit size to restore the water's reach. The internal spring acts just like your thumb, adjusting automatically in fractions of a second.

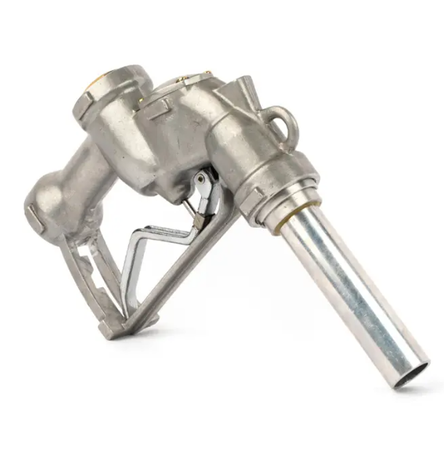

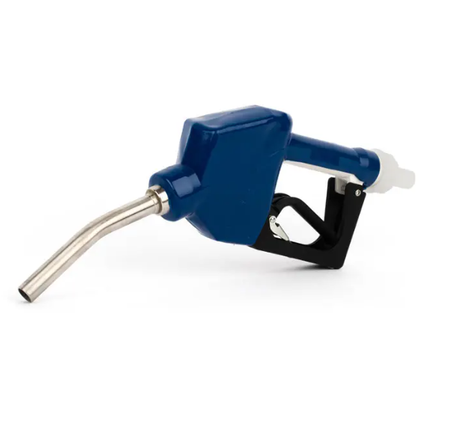

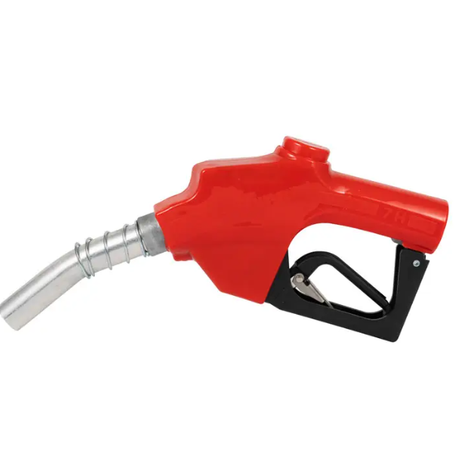

Mechanism 2: Venturi Vacuum & Poppet Valves (Fuel & Chemical Dispensing)

Commercial fluid transfer relies on complex fluid dynamics to prevent catastrophic spills. Dispensing variants use an intricate network of air ports and internal valves.

Fluid rushing through the main chamber passes a narrow restriction. This high-speed flow creates a localized vacuum via the Venturi effect. The vacuum pulls air through a tiny sensing port located near the tip. As long as air flows freely through this port, the main poppet valve remains securely open.

When the receiving tank fills, fluid eventually covers the sensing port. It instantly blocks the airflow. The trapped vacuum pressure spikes dramatically. This sudden pressure shift trips an internal lock mechanism. The diaphragm collapses, snapping the main poppet valve shut in milliseconds. This rapid closure stops the flow entirely, preventing dangerous overflows before they occur.

Pressure-Activated vs. Standard Nozzles: Evaluation Criteria

Procurement teams must understand the baseline differences before authorizing upgrades. Standard variants rely purely on mechanical levers. The operator fully controls the flow rate manually. This basic design remains prone to human error, continuous flow risks, and severe underperformance during supply fluctuations.

Upgrading to a Pressure-Sensitive Automatic Nozzle fundamentally changes system performance.

Performance Curve and Stability

A standard fixed opening forces pressure to drop linearly alongside flow reductions. Conversely, an automatic design flattens the performance curve. The internal adjustments keep the discharge pressure virtually flat across its entirely rated GPM (Gallons Per Minute) range. This stability ensures reliable performance regardless of varying pump input.

Feature

Standard Fixed Nozzle

Pressure-Sensitive Automatic Nozzle

Discharge Pressure

Drops linearly if pump supply decreases

Remains virtually constant across rated range

Operator Burden

High (Requires manual pressure management)

Low (Device handles pressure compensation)

Flow Control

Mechanical lever only

Internal dynamic baffle or diaphragm

Optimal Use Case

Highly stable pump infrastructures

Fluctuating supply or variable drafting sources

The "Limp Lever" Safety Feature

Modern industrial equipment prioritizes passive safety. Advanced models feature a pressure-activated lock. Operators often refer to this as a "limp lever" or "dead lever."

If the delivery hose lacks active pump pressure, the handle remains physically disabled. The user can pull the trigger freely, but they will feel zero resistance. The main valve simply will not open. The line must reach a specific operational pressure before the lever engages. This prevents accidental chemical or fuel spills when the system sits idle.

Vapor Recovery & Breakaway Integrations

Safety extends beyond flow control. Modern automatic systems integrate secondary safety matrices. Vapor recovery systems capture harmful emissions directly at the dispensing point. They route dangerous fumes back into the storage tank. Additionally, inline breakaway valves protect the infrastructure. If a vehicle drives off prematurely, the connection snaps safely, sealing the hose instantly to prevent catastrophic damage.

Navigating Industry Standards and Compliance

Selecting incorrect hardware introduces severe liability. Poor procurement choices often lead to steep regulatory fines or dangerous system failures. You must verify compliance documentation before deployment.

NFPA 1962: Fire & Rescue Standards

High-stress emergency environments require absolute reliability. The National Fire Protection Association outlines strict operational mandates under NFPA 1962.

Compliant dynamic nozzles must maintain their target pressure within a highly specific margin. The standard dictates an acceptable variance of just ±15 psi across the entire rated flow range. If a unit strays beyond this tight margin during testing, it fails compliance. This ensures operators always receive a predictable, safe stream profile.

NFPA 30A: Commercial Dispensing & Pre-Pay Systems

Retail and commercial transfer stations face entirely different operational hazards. NFPA 30A regulates these specific environments.

Pre-pay dispensing creates unique risks. Customers often use basic "hold-open clips" to lock standard handles open. When a pre-pay transaction hits its exact dollar limit, the pump automatically depressurizes and stops flow. The user hangs up the hose. However, the standard handle remains physically locked open. The next user activates the pump, and fuel immediately sprays everywhere.

Regulatory bodies mandate pressure-activated technology here. A compliant device utilizes a forced-reset mechanism. When the pump depressurizes, the unit structurally disables the hold-open clip. The valve slams shut. The handle resets to the dead lever state. It physically prevents accidental dispensing for the next user.

Implementation Risks: Uncovering the "Myth of the Good Stream"

Advanced fluid dynamics provide incredible benefits, but they are not a universal cure-all. You must address operational drawbacks transparently to build trust among frontline users.

Visual Deception (The GPM Mask)

Dynamic adjustment creates a dangerous visual illusion. Because the device constantly optimizes the stream profile, it always looks robust and powerful. A delivery rate of 50 GPM can look visually identical to a 150 GPM flow.

We call this the "GPM Mask." The equipment aggressively protects the reach, sacrificing volume to do so. Operators often look at the tight stream and falsely assume they are delivering massive fluid quantities.

You must actively mitigate this operational risk. You cannot rely on visual confirmation. Operators must undergo specialized training. They need to gauge true output by feeling the physical reaction force pushing back against the hose line. Alternatively, modern operations install inline flow meters. These meters provide concrete, undeniable volume data.

Actual Pump Output (GPM)

Fixed Nozzle Visual Appearance

Automatic Nozzle Visual Appearance

Required Operator Action

150 GPM (Optimal)

Strong, far-reaching stream

Strong, far-reaching stream

Proceed normally

100 GPM (Reduced)

Slightly broken, shorter throw

Strong, far-reaching stream

Check inline flow meter

50 GPM (Critical Drop)

Weak, failing discharge

Appears strong (Deceptive)

Assess physical hose reaction force

Maintenance Overhead

Adaptive equipment houses complex internal moving parts. Springs, flexible diaphragms, and tiny sensing ports require pristine conditions to function correctly. Debris, hard water scale, or chemical crystallization will easily bind these precise components.

You must establish a rigorous maintenance culture. Fixed-orifice tools survive heavy abuse with minimal care. In contrast, dynamic models demand strict servicing.

  1. Daily Visual Inspection: Check the sensing port and outer boot for physical damage or obstructions.

  2. Post-Operation Flushing: Run clean, clear fluid through the system immediately after dispensing harsh chemicals. Rotate the stream selection dial fully to dislodge trapped debris.

  3. Lever Resistance Testing: Verify the "limp lever" function engages properly when the hose line remains unpressurized.

  4. Quarterly Lubrication: Apply approved lubricants to the main poppet stem and internal baffling spring assemblies.

  5. Annual Flow Testing: Connect the device to a calibrated flow meter. Verify it maintains the required ±15 psi margin across its rated operational range.

Procurement Checklist: Is an Automatic Nozzle Right for Your Operations?

Equipment upgrades require clear shortlisting logic. You should evaluate your operational reality before committing capital. Use this framework to decide if you need to invest in pressure-sensitive technology.

Recommend choosing a dynamic, pressure-sensitive model if:

  • Your daily operation routinely deals with frustratingly fluctuating supply pressures.

  • Your crews frequently rely on drafting fluids from varied, unpressurized static sources.

  • Your specific industry requires strict emission controls, such as specialized vapor recovery integrations.

  • You operate retail pre-pay dispensing systems and need absolute safety compliance.

  • Your operators demand standardized reach and throw profiles, completely regardless of the primary pump operator's skill level.

Recommend sticking to traditional fixed or selectable models if:

  • Your facility houses highly stable, continuously guaranteed pump infrastructure.

  • You strictly lack the ongoing maintenance budget required to service complex mechanical internals.

  • Your environment experiences heavy debris, which repeatedly clogs fine sensing ports.

  • Absolute certainty of precise GPM output, without relying on external flow gauges, remains a strict operational requirement for your frontline team.

Conclusion

A dynamically adjusting delivery tool fundamentally alters fluid management. It uses advanced fluid mechanics to compensate for upstream supply inefficiencies seamlessly. By mastering the differences between spring-loaded baffles and Venturi vacuum systems, you can dramatically enhance both compliance and user safety.

You must now take actionable next steps. Audit your current infrastructure thoroughly. Evaluate your pump stability and identify existing compliance gaps. Consult directly with a technical flow specialist. Always request a side-by-side flow demonstration to witness the GPM mask effect firsthand before finalizing any major procurement decision.

FAQ

Q: How does an automatic nozzle know when a tank is full?

A: It uses a small sensing port located near the dispensing tip. As fluid fills the tank and covers this tiny port, it blocks necessary airflow. This creates a sudden, intense vacuum via the Venturi effect. The vacuum trips an internal flexible diaphragm, snapping the main valve shut instantly.

Q: Does an automatic nozzle create more pressure?

A: No. It absolutely cannot create pressure or flow that the pump fails to provide. It only manages the available fluid supply. It artificially restricts its internal opening to maximize stream reach and optimize delivery efficiency at lower volumes.

Q: What does a "dead lever" or "limp lever" mean?

A: It is a critical fail-safe mechanism found in modern pressure-activated fuel equipment. If the system remains unpressurized, squeezing the operating handle does nothing. You feel zero resistance. This physically prevents accidental spills from residual fluid left resting in the hose.
