As a primary manufacturer and direct supplier of industrial fluid transfer solutions, we present the DLY-25A Manual Nozzle equipped with an integrated electronic meter. Engineered for rigorous daily operations, this dispensing tool ensures absolute volumetric tracking for commercial fleets and agricultural facilities.
Integrated high-precision electronic tracking mechanism
Rugged aluminum construction built for demanding environments
Versatile compatibility with diesel, kerosene, and petrol
Direct-from-manufacturer sourcing ensures optimal procurement value
Ergonomically balanced to reduce operator fatigue during high-volume shifts

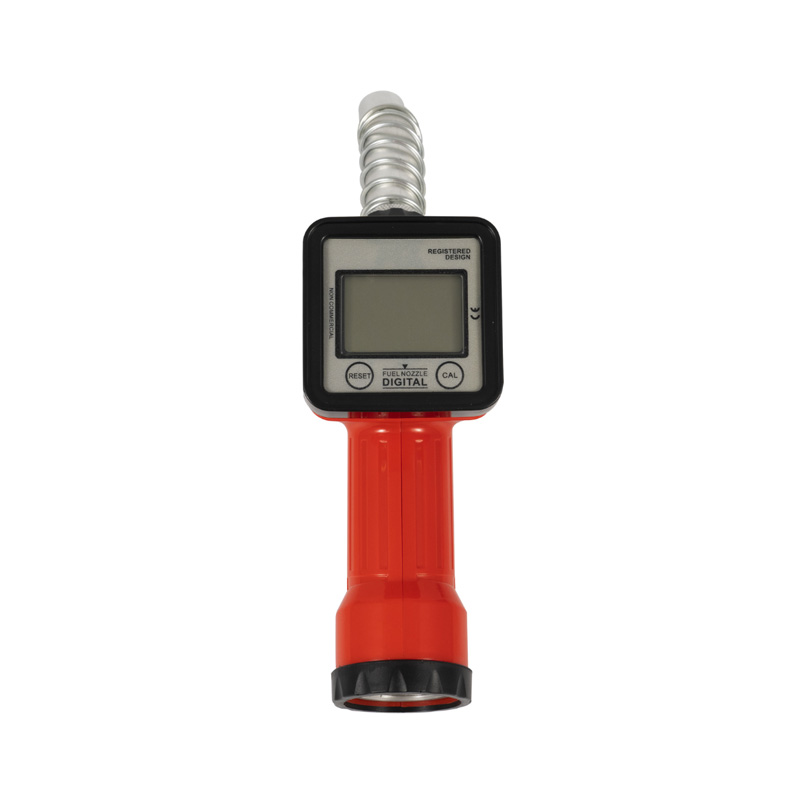

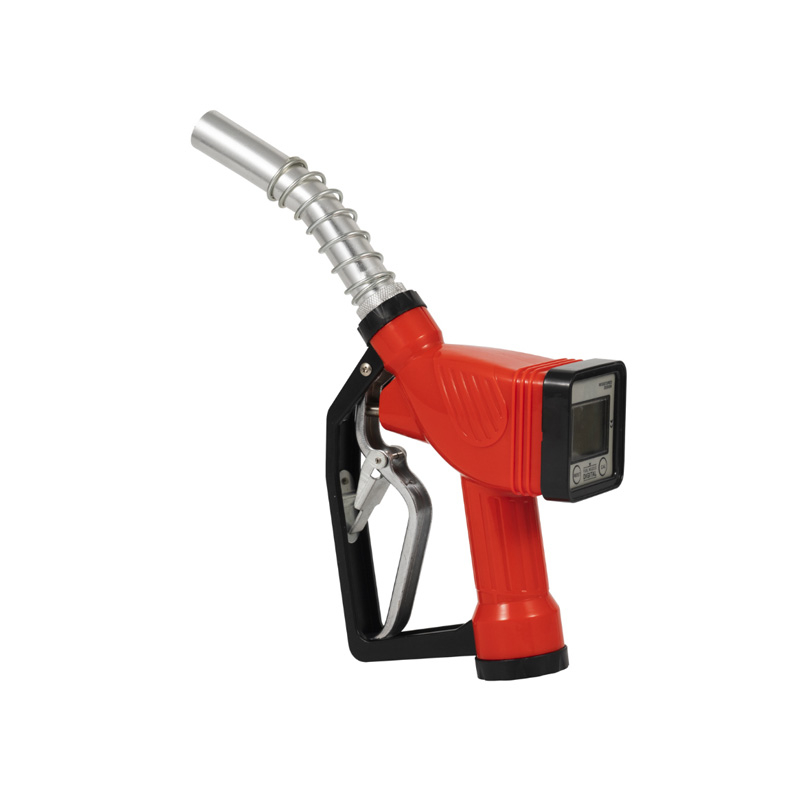

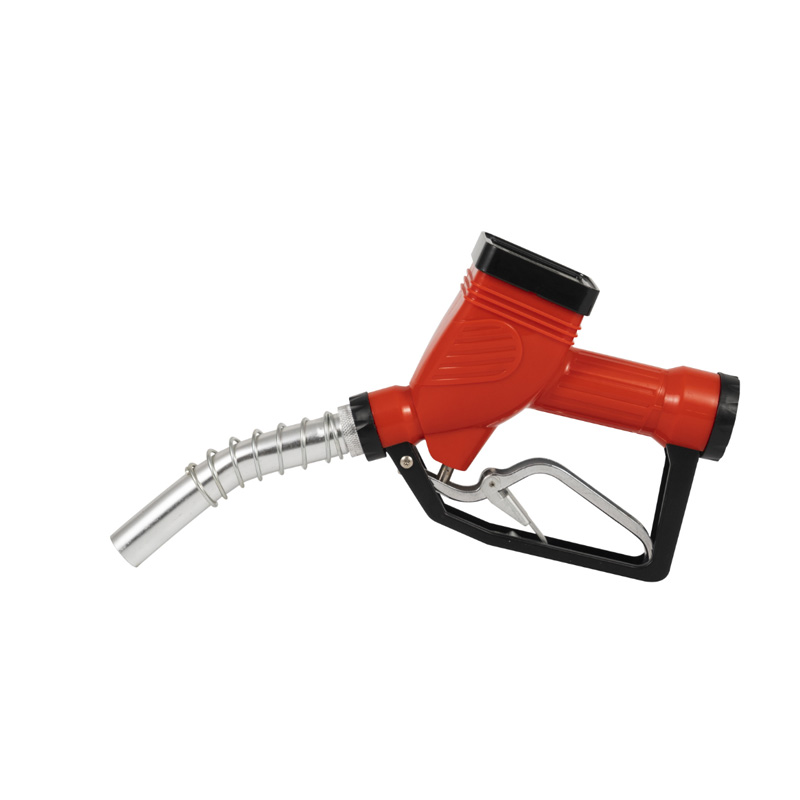

The TDW DLY-25A Manual Nozzle With Electronic Meter represents the pinnacle of fluid dispensing engineering, designed specifically to streamline high-volume refueling operations. When you grip the cold, solid aluminum handle, you immediately feel the industrial-grade craftsmanship built to withstand the harshest operational environments. The smooth, responsive trigger pull emits a satisfying, mechanical click, offering operators precise tactile control over the fluid flow. By integrating an advanced micro-processing electronic meter directly into the nozzle body, this tool eliminates the need for separate, bulky inline tracking systems. Facility managers and procurement directors will appreciate how this seamless integration drastically reduces fluid shrinkage and inventory discrepancies. Every drop of diesel, kerosene, or petrol is meticulously accounted for, transforming a standard refueling task into a highly controlled, data-accurate process. The sleek, compact profile belies its robust internal architecture, ensuring that even during continuous, high-demand usage, the nozzle performs with unwavering reliability. This is not merely a transfer tool; it is a comprehensive fluid management asset that protects your bottom line while elevating the daily operational experience for frontline users.
Understanding the exact technical capabilities of your equipment is crucial for seamless integration into existing infrastructure. The following specifications detail the precise engineering parameters of the DLY-25A, providing procurement teams with the critical data needed to verify compatibility with current storage tanks, transfer pumps, and operational protocols. Every metric reflects our commitment to delivering uncompromising industrial-grade reliability.
| Specification | Detail |
|---|---|
| Product Name | TDW DLY-25A Manual Nozzle With Electronic Meter |
| Model Number | DLY-25A |
| Main Material | Aluminum |
| Measurement Accuracy | ±1% |
| Flow Rate Range | 20 - 60 L/min |
| Inlet / Outlet Size | 1" |
| Counting Range | 0.1 - 9999.9 L |
| Maximum Working Pressure | ≤0.3 Mpa |
| Meter Type | Electronic Meter |
| Applicable Media | Diesel, Kerosene, Petrol |
| Measurement Units | Litre or Gallon |
| Net Weight | 3 kg |
| Dimensions | 28 × 20 × 18 cm |
Equipping your facility with the right dispensing technology requires tools that go beyond basic functionality. The DLY-25A is engineered with a suite of advanced features designed to optimize operational workflows, reduce maintenance downtime, and provide unparalleled accuracy during every fluid transfer cycle.
Ergonomic Weight Distribution: Weighing precisely 3 kg, the nozzle is meticulously balanced to reduce wrist strain during extended refueling shifts, significantly improving operator comfort and safety.
Instant Unit Conversion: Seamlessly toggle between Litres and Gallons, making it an ideal solution for international operations or facilities managing diverse equipment origins.
All-Weather Readability: The electronic display is engineered for high contrast, ensuring crystal-clear visibility whether operating under glaring midday sun or in dimly lit warehouse environments.
Drop-Resistant Housing: The heavy-duty die-cast aluminum shell protects sensitive electronic metering components from accidental drops and impact, ensuring a longer lifecycle.
Simplified Maintenance: Designed with highly accessible internal components, allowing on-site technicians to perform routine cleaning and battery replacements without requiring specialized proprietary tools.
Achieving meticulous inventory control is paramount for large-scale fluid management. The integrated high-precision electronic meter is the heartbeat of this nozzle, designed specifically to minimize financial losses associated with unrecorded fluid dispensing.
Maintains a strict flow error margin of ±1%, ensuring every transaction is logged with commercial-grade precision.
Features a highly intuitive field calibration system, allowing your maintenance teams to adjust settings on-site without returning the unit to the manufacturer.
Drastically reduces operational overhead by eliminating the hidden costs of fuel shrinkage, unauthorized dispensing, and inaccurate manual logging.
Provides consistent, repeatable accuracy even after thousands of dispensing cycles, actively safeguarding your long-term operational profitability.
Industrial environments demand equipment that can endure constant abuse without compromising performance or safety. The DLY-25A is forged to meet and exceed these exact structural requirements.
Constructed from premium die-cast aluminum, offering exceptional resistance to the corrosive properties of harsh fuels and environmental exposure.
The robust metal housing acts as an impenetrable shield, protecting the delicate internal electronic metering components from mechanical shocks and heavy vibrations.
Maintains a highly manageable total weight of exactly 3 kg, striking the perfect balance between heavy-duty durability and ergonomic, fatigue-free handling.
The smooth, polished metallic finish not only projects a professional appearance but also prevents the buildup of grime and oil, making daily cleaning effortless.
Engineered to withstand extreme temperature fluctuations, ensuring the trigger mechanism remains fluid and highly responsive year-round.
Versatility in fluid handling allows procurement teams to standardize their equipment across multiple departments, simplifying inventory management and reducing specialized training requirements for operators.
Safely and efficiently dispenses a wide spectrum of fuels, including diesel, kerosene, and petrol, without degrading internal elastomeric seals over time.
Perfectly tailored for diverse commercial applications, seamlessly transitioning from agricultural machinery refueling to heavy-duty logistics fleet management.
Eliminates the financial burden of purchasing and maintaining separate, fluid-specific nozzles, thereby optimizing your annual equipment budget.
Internal flow paths are precision-machined and treated to prevent cross-contamination reactions when switching between compatible fuel types after standard flushing procedures.
Time is a critical asset in high-volume operations. The internal fluid dynamics of this nozzle are optimized to accelerate refueling times while maintaining absolute operator control.
Delivers a highly stable flow rate ranging from 20 to 60 Litres per minute, adapting instantly to the output pressure of your pumping system.
The lower flow threshold allows for precise topping-off of smaller containers and sensitive machinery without hazardous splashing, foaming, or overflow.
The maximum 60 L/min capacity ensures that heavy-duty trucks and large industrial storage tanks are replenished swiftly, drastically minimizing vehicle downtime.
The responsive trigger valve provides linear flow control, allowing operators to smoothly transition from high-speed bulk dispensing to a highly controlled trickle.
Data visibility directly impacts operational accuracy. We designed the electronic interface to be as intuitive, clear, and foolproof as possible for frontline operators working in fast-paced environments.
Features a high-contrast electronic dial that delivers immediate, unambiguous readings, eliminating the guesswork associated with analog mechanical meters.
Boasts an expansive single-transaction counting range from 0.1 all the way to 9999.9 Litres, accommodating both minor equipment top-ups and massive bulk transfers.
Offers one-touch toggling between Litres and Gallons, catering seamlessly to international procurement standards and localized reporting requirements.
The digital interface is hermetically sealed against moisture and aggressive fuel vapors, ensuring the screen remains pristine and condensation-free in humid climates.
Tactile reset buttons provide a satisfying physical click, confirming that the meter is perfectly zeroed out and ready for the next precise transaction.
Upgrading your dispensing hardware should not require a complete, costly overhaul of your existing infrastructure. This nozzle is built strictly around global compatibility standards.
Utilizes a universal 1-inch inlet and outlet diameter, guaranteeing a flawless, leak-free connection with standard industrial hoses and fittings.
Engineered to operate flawlessly under a maximum working pressure of ≤0.3 Mpa, making it highly compatible with standard gravity-fed tanks and motorized transfer pumps.
Drastically reduces integration friction for facility managers, allowing for immediate, hassle-free deployment straight out of the box.
The standardized threading ensures that replacement parts, rotational swivels, and breakaway valves can be attached without the need for expensive, proprietary adapters.
Selecting a manufacturing partner for critical fluid transfer equipment is a strategic decision that impacts your entire operational ecosystem. We are committed to engineering excellence, ensuring that every product leaving our facility meets the rigorous demands of global industrial applications.
Direct Source Economics: By engaging directly with the manufacturer, you secure premium-grade equipment without the inflated costs associated with intermediary distributors, optimizing your procurement budget.
Uncompromising Quality Control: Every single nozzle undergoes rigorous pressure testing and electronic calibration verification before packaging, ensuring zero defect rates upon arrival.
Global Standard Compliance: Our manufacturing processes adhere to strict international quality management protocols, guaranteeing consistent performance across diverse geographical markets.
Dedicated Technical Support: We provide comprehensive documentation and responsive engineering support to assist your maintenance teams with integration, calibration, and long-term servicing.
Scalable Production Capacity: Whether outfitting a single regional depot or standardizing equipment across a multinational fleet, our manufacturing infrastructure is designed to fulfill large-scale demands promptly.
Addressing the technical inquiries of procurement and engineering teams is a priority. Below are detailed responses to the most common questions regarding the operational capabilities of this electronic metering nozzle.
For optimal accuracy, we recommend verifying the calibration every six months, or after every 50,000 liters dispensed. The built-in electronic system allows your on-site technicians to perform quick, precise adjustments using a standard graduated proving can, ensuring the ±1% accuracy is consistently maintained without the need for factory returns.
The DLY-25A is specifically engineered for systems with a maximum working pressure of ≤0.3 Mpa. It performs exceptionally well with gravity-fed tanks and standard transfer pumps. However, it is not recommended for ultra-high-pressure commercial dispensers that exceed this threshold, as excessive pressure may compromise the internal electronic seals.
Absolutely. The electronic meter is encased in a rugged, weather-resistant housing designed to protect the microelectronics from dust, rain, and fuel vapors. The high-contrast screen is UV-treated to prevent fading or blackouts when exposed to direct sunlight during outdoor agricultural or logistics refueling operations.
The premium die-cast aluminum construction is highly resistant to corrosion. Routine maintenance simply involves wiping down the exterior with a non-abrasive cloth to remove dirt and fuel residue. Internally, ensuring that the dispensed fuels are free of heavy particulate matter will prolong the life of the internal turbine and metering mechanisms.
The electronic interface features a straightforward, secure button combination to toggle the measurement units. This intuitive design prevents accidental switching during active dispensing while allowing authorized facility managers to easily align the tool's output with their specific regional inventory tracking systems.
The DLY-25A is a manual dispensing nozzle, meaning it relies on the operator to control the flow via the trigger mechanism. This manual operation is preferred in scenarios where operators need absolute tactile control over the dispensing speed, particularly when topping off complex or uniquely shaped industrial reservoirs.
