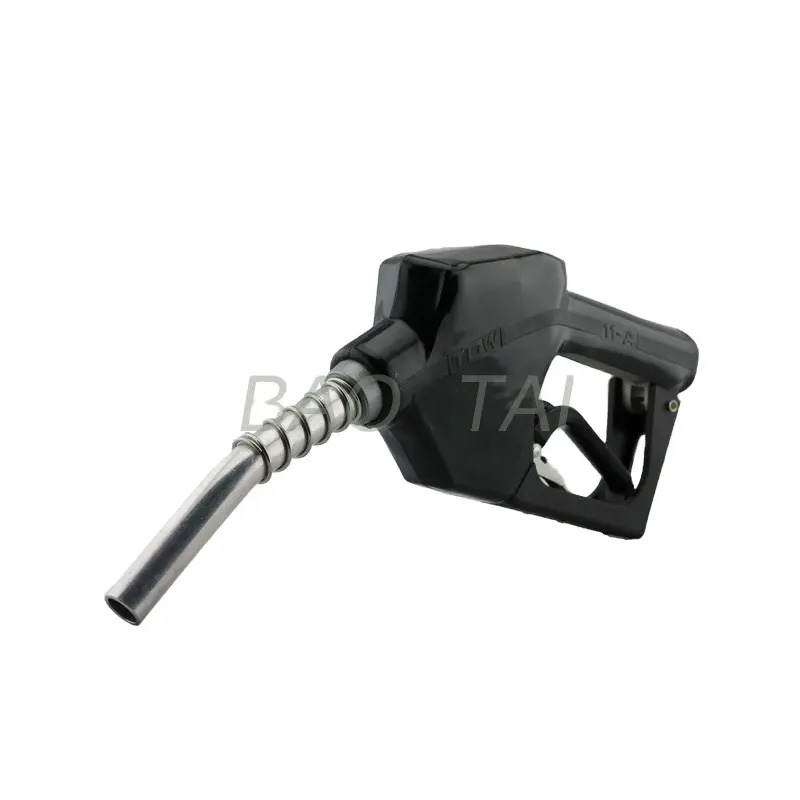

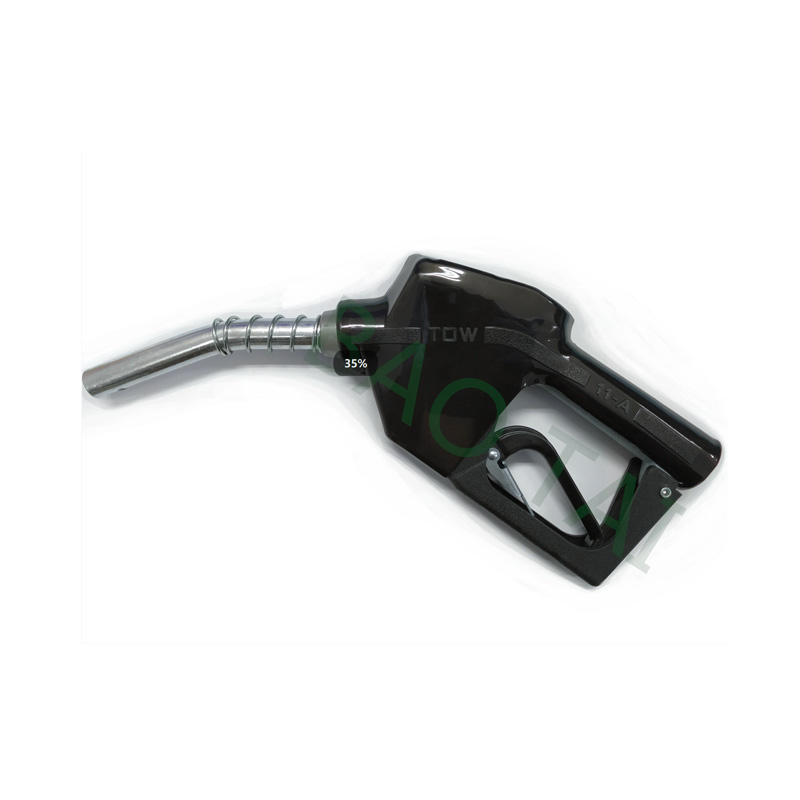

Best Price 11A Auto Shut off Fuel Transfer Gun Injector Nozzle Aluminium Dispensers for Petrol Gasoline Station Oil Filling.
1 - 49 sets
$15.00
50 - 99999 sets
$14.00
>= 100000 sets
$11.00
Key attributes | |
Industry-specific attributes | |
Type | Fuel dispenser |
Other attributes | |
Materia | aluminium |
pump | / |
Power | / |
Accuracy | / |
NozZle | / |
ambient temperature | / |
Place of Origin | Zhejiang,China |
Brand Name | TDW |
McdelNumber | TDW-11A |
Working Voltage | 220Y |
Flow Rate | 60 Ljm |
Warranty | 1YEAR |
Certificate | S09001ATEX |
Supply Ability | 20000 PiecejPieces per Month |

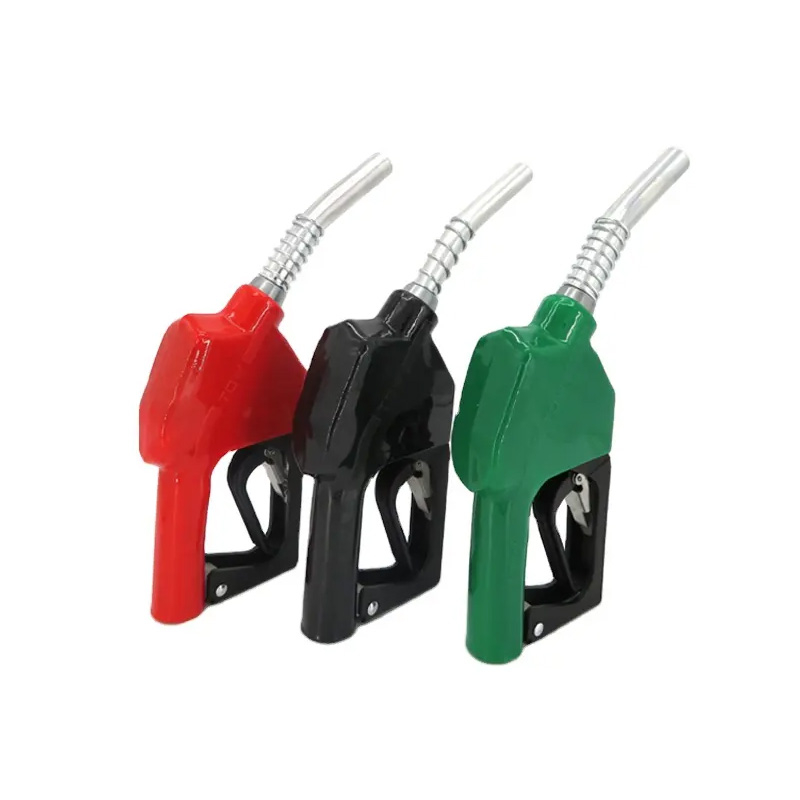

Colo | red,blue,green |
Brand Name | TDW |
Warranty | 1Year |
Certificates | IS09001ATEX |
M0Q | 1 set |
Materia | Aluminum |
Max Flow Rate | 60 Ljm |
Packaging and delivery | |
Selling Units: | Single item |
Single package size: | 10X20X5 cm |
Single gross weight: | 1.300 kg |
Product Description

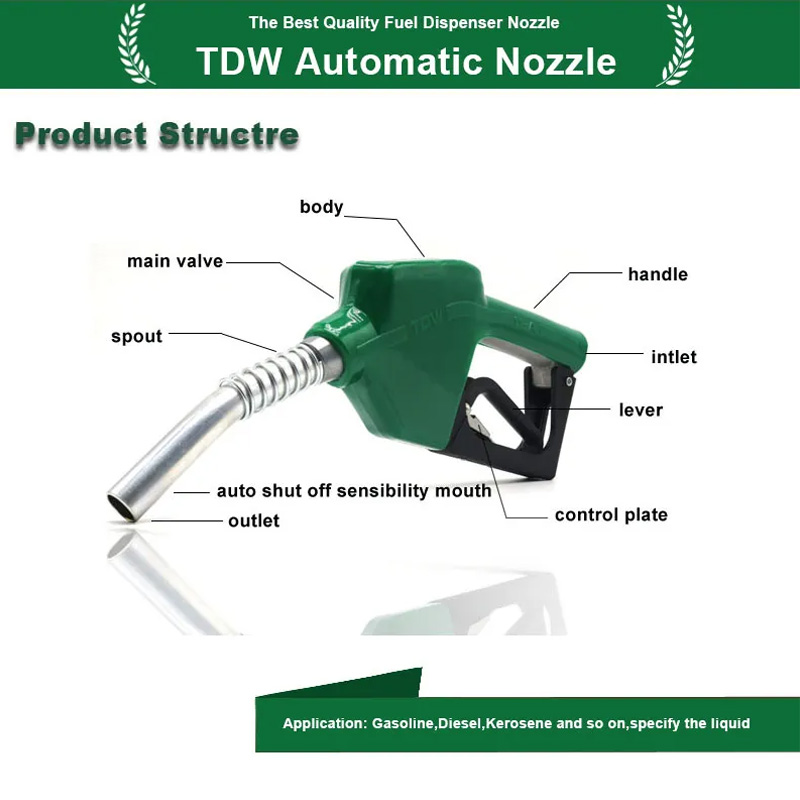

The TDW 11A series nozzle is design for commercial filling applications.
Accurate Flow Controller allows nozzle to shut off automatically when the tank is full,easy to control the flowrate,endurable and economical.
Comparing with 11B series,the 11A does not include a No Pressure No Flow.
It adopts advanced technology and conventional design which has unique brand in Baotai company.
Features and Benefits
☆Automatic shut-off.
*One year quality warranty.
OEM &ODM are accepted.
*Seals and o-rings for smooth valve operation.
*Convenient one-finger hold-open clip to set flow rate.
*Durable levers protect your customer's vehicle from scratching.
*Hand insulator is the most comfortable and durable to use in the industry.
*The TDW 11A series nozzle is for use in gasoline,kerosene,diesel,and ethanol blends.
Cycle-tested and testing performance,pressure resistance,sensitivity to ensure product quality.
The structure design is advanced,and the spout can be replaced,which makes it easier and more
convenient for customers to use and maintaining.
*Made in China.We pride ourselves on quality product and good value.
Specification | ||||
Material | ||||
Body | Aluminum | |||
Lever and lever guard | Duratuff | |||
Main stem | Extra hard stainless steel | |||
Seals | Buna-N,Viton | |||
Technical Specifical | ||||
Working Pressure | 0.2 Mpa | |||
Auto Shut-off sensibility | 0.1 second | |||
Thread | NPT/BSPT | |||

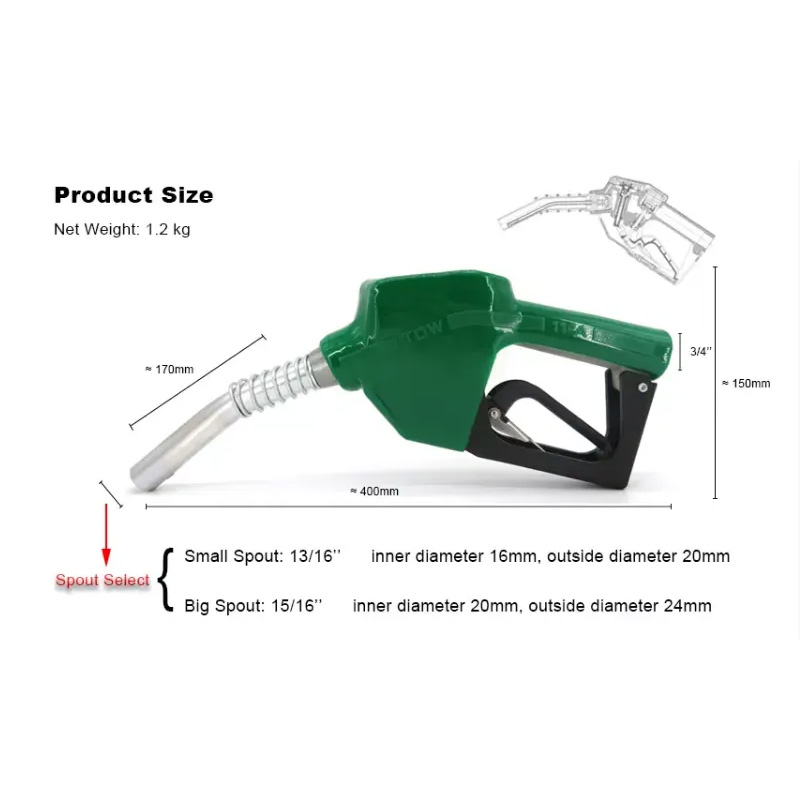

Spout Outlet Diameter | 15/16",13/16" | |||
Inlet Size | 3/4" | |||
Flow Rate | 18-60 Lm(15/16"),15-40 Lm(13/16") | |||
Net Weight | 1.15 KG | |||
Order Select | ||||
ltem No. | Inlet Thread | Spout O.D. | ||
TDw-11A01 | 3/4"NPT | 13/16" | ||
TDw-11A02 | 3/4"NPT | 15/16" | ||
TDW-11A03 | 3/4"BSPT | 13/16" | ||
TDW-11A04 | 3/4"BSPT | 15/16" | ||
Package Data | ||||
Size | Weight | |||
1pes =43*17*6.5 cm(box) | 1.3 kg | |||
20pcs =0.1 club (carton) | 26.3 kg | |||
